Introduction

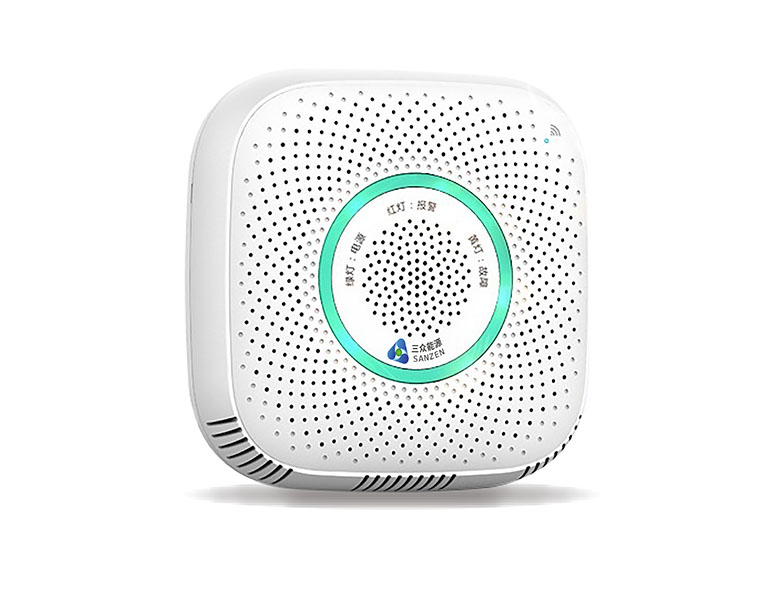

“Xiao Anzi” is a wireless gas and smoke alarm in IoT system, supplied by Sanzen Energy, it is equipped with a robot hand that can automatically cut off the gas pipeline after touching the early warning system.The system can divide the warning into three levels, and eliminate false warnings after automatic analysis.
When “Xiao Anzi” detects large amount of gas leakage, its robot hand would cut off the gas pipeline automatically. For high pressure pipelines, this period can be within 12s, and it would be automatically unlocked after the warning gets clear. However in traditional circumstances, it would take about 2 hours to shut down the high-pressure pipeline manually. Besides, “Xiao Anzi” would message the alarm information to grid office and security officer, after then, security officer can learn the alarm information at the first time and response quickly to minimize life and property loss. What’s more, the monitoring data would be updated to intelligent fire monitoring platform simultaneously to achieve multi-linkage among 119/120/110, providing security guard for cities.
Specification
| Communication Technology | NB-IoT | Demarcate Gas | CH4 |
| Networking range | NB-IoT signal Coverage area | Alarm Concentration | 6%LEL |
| Working Voltage | AC220V | Deviation | ±3%LEL |
| Working Temperature | -10℃~+55℃ | Power Output | Output Signal control Robotic hand to switch Gas Valve |
| Working Atmosphere | 800HPa~1100HPa | Output Capability | 11~13V, 550mA |
| Rated Power | ≤3W | Preheating time | Abt 3 mins |
| Alarm Indication | Red LED Flashing,Voice Warning | Dimension | 89.5*89.5*59mm(including plug) |
| Malfunction Indication | Yellow LED Light On,Voice Warning | Installation Method | Wall-mounted, plug and play |
| Alarm Sound Pressure | ≥70dB(with distance 1M) | Storage Temperature | -20℃~+60℃ |
| Alarm Modes | Sound&Light Warning | Working Humidity | Max 95%RH(No Condensation) |
Applied cases
Highlights
Multiple Alarm ways:
- Automatic Voice Alarm
- SMS Alert to Resident
- A key linked to 110/119, automatic alarm
Super-Low Consumption: Saving energy and power, widely used in different fields
Risk-avoiding Safely:
- Equipped with a robotic hand
- Sending alarm and Automatically cut off the gas pipeline at early warning；
- Reducing loss(limited to Gas Pipeline)
Practical and Convenient: Independent detection, Applicable to all plugs
